1. Build Integration

Integration Steps for Magento 1.x Extension

1. Download and Install via Repository

   .

2. Configure Magento Store 1.x

   .

Step 1: Download and Install via Repository

Follow the steps given below to download and install Magento 1.x Extension.

Download the Required Repository

1. Download

   the Razorpay-1.1.31.tgz file from the latest release.

2. If you have Onepage Checkout (IWD or Fire Checkout),

   download

   the Source Code zip from the latest release. With Onepage Checkout you can gather the required information from the shopper and complete the checkout process quickly. When Onepage Checkout is enabled, the entire checkout process takes place on a single page.

Install the Repository

You can install the repository in two ways:

• Install via Magento Connect

• Install without Magento Connect

Install via Magento Connect

1. Go to Magento Connect Manager.
2. Go to Direct package file upload.
3. Click Choose File and select the TGZ file from Step 1.
4. Click upload.

Install without Magento Connect

1. Unzip and open the downloaded folder.
2. Copy the app folder.
3. Paste and merge it into the Magento root folder.
4. Copy the js folder.
5. Paste and merge it into the Magento root folder.

Once installed, navigate to Configuration and then to Payment Gateways and

Step 2: Configure Magento Store 1.x

To configure your Magento store for Razorpay:

1. Log in to your

   Magento store

   .

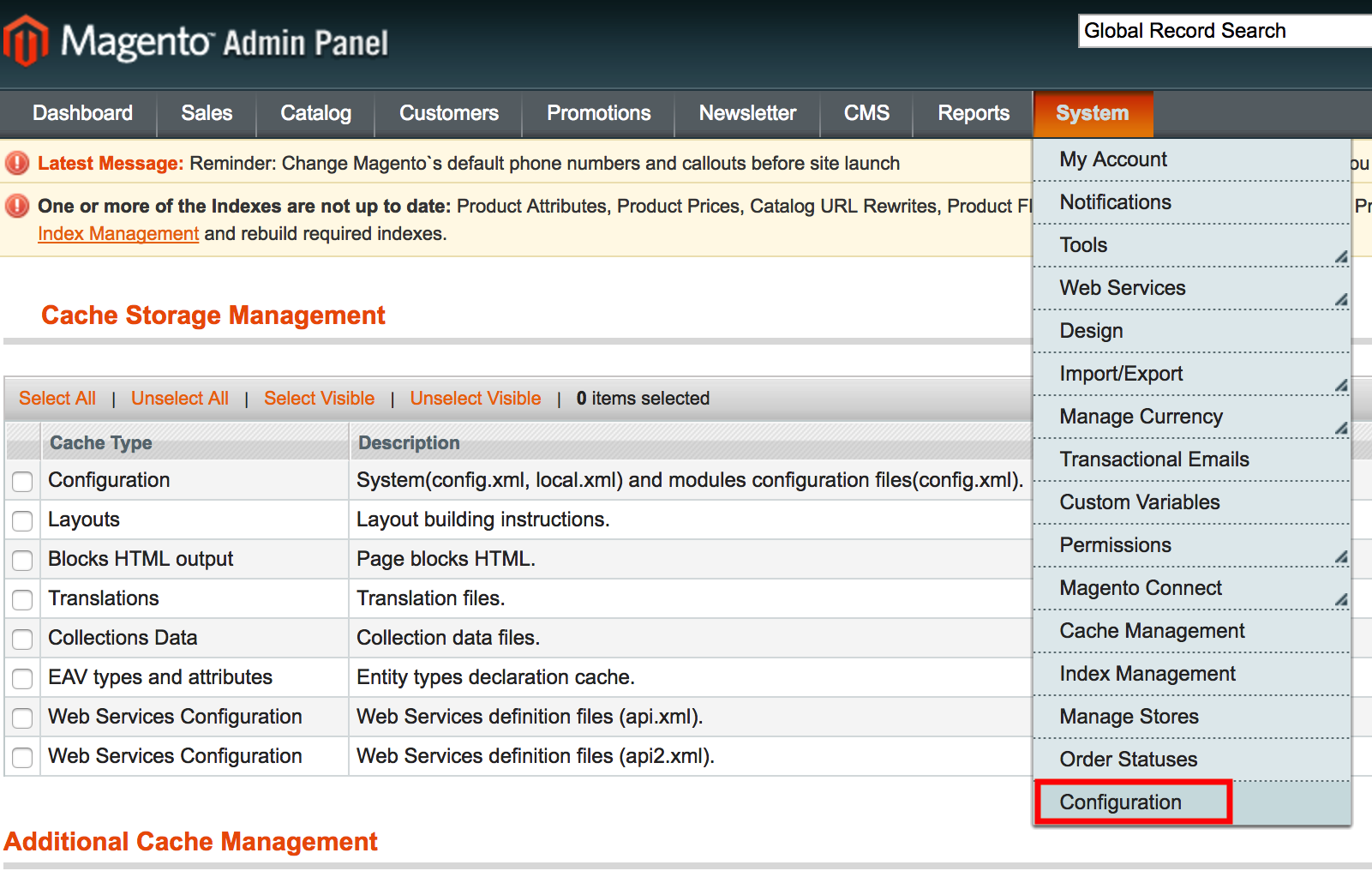

2. Click on the System tab and then select Configuration option from the drop-down list.



3. Click Payment Methods in the menu panel.

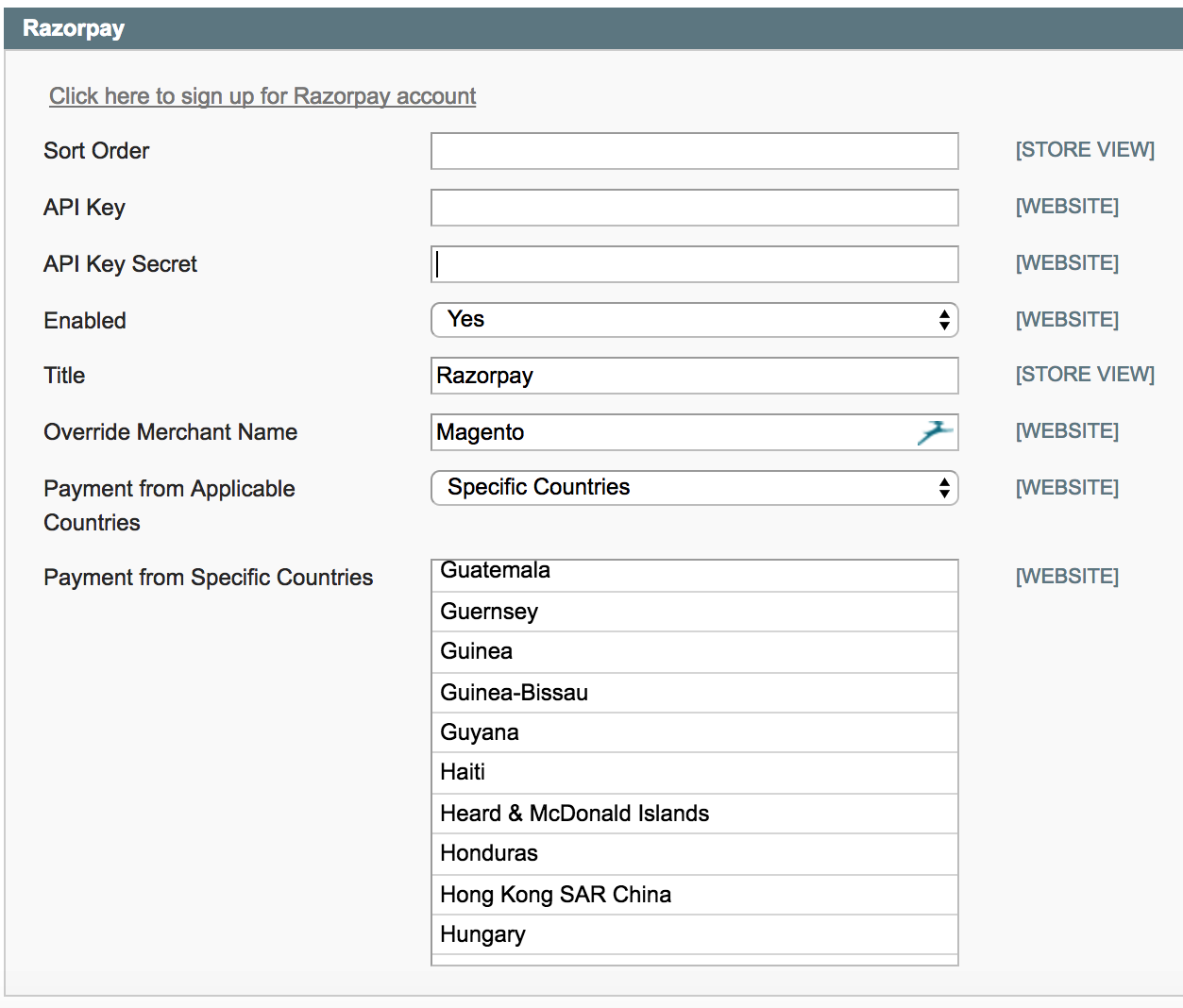

4. Scroll down. Click Razorpay and enter your test mode [KEY_ID] and [KEY_SECRET].



5. Select Yes for the Enabled option.

6. Click Save Config button. This activates your account in the Test Mode. You can use this account to make a few test payments to ensure a successful workflow.

   Handy Tips

   In test mode, no real money is deducted from your account.

Integration Steps for Magento 2.x (Adobe Commerce) Extension

1. Download and Install Extension

   .

2. Configure Magento Store 2.x

   .

3. Set Up Webhooks

   .

Step 1: Download and Install Extension

You can install the extension through two ways:

• Install Using Composer

• Install Without Composer

Install Using Composer

1. Install the extension on your Magento store using the Composer Package Manager. Composer is an application-level package manager for the PHP programming language that provides a standard format for managing dependencies of PHP software and required libraries.

2. Go to your installation root directory of Magento and execute the following command:

   Command

   copy

   composer require razorpay/magento
   bin/magento module:enable Razorpay_Magento

3. You can check if the installation was successful by executing the following command in the Magento root directory.

   Command

   copy

   bin/magento module:status

   Handy Tips

   You should see Razorpay_Magento in the status. It might appear on the disabled modules list.

4. Enable and deploy the Razorpay module using commands:

   Command

   copy

   bin/magento module:enable Razorpay_Magento
   bin/magento setup:di:compile
   bin/magento setup:upgrade
   bin/magento cache:flush
   bin/magento setup:static-content:deploy

Install Without Composer

1. Download the code.zip file from the

   latest release

   . Extract the zip.

2. Place the code folder from Step 1 in your app folder. If you're performing an update, replace/overwrite the existing code folder.

3. Enable and deploy the Razorpay module using commands:

   Command

   copy

   bin/magento module:enable Razorpay_Magento
   bin/magento setup:upgrade

4. Install Magento cron jobs using the command:

   Command

   copy

   bin/magento cron:install

5. Enter the following command to compile the dependency code:

   Command

   copy

   bin/magento setup:di:compile

6. Enter the following command to upgrade the Razorpay Magento module from the Magento installation folder:

   Command

   copy

   bin/magento setup:di:upgrade

7. On the Magento admin dashboard, open Razorpay payment method settings and click Save Config.

   Watch Out!

   If you see the message One or more of the Cache Types are invalidated: Page Cache. highlighted in yellow on the Admin page, go to Cache Management and refresh cache types.

8. Run the following command:

   Command

   copy

   bin/magento cache:flush

Step 2: Configure Magento Store 2.x

To configure your Magento store for Razorpay:

1. Log in to your

   Magento store

   .

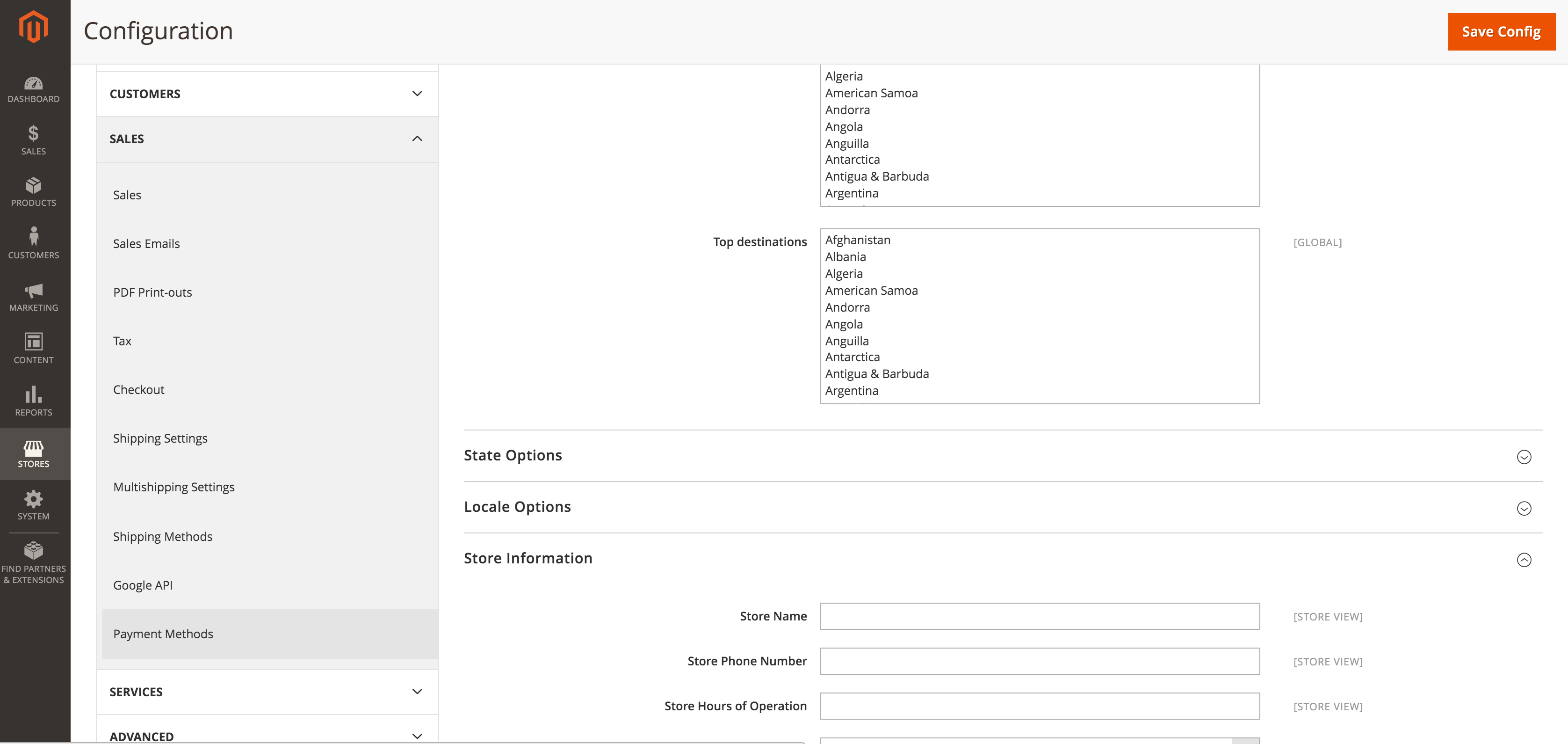

2. Choose Stores on the Admin sidebar to the left. Now go to Settings → Configuration.



3. In the Configuration page, click on Sales on the left and choose Payment Methods.



4. In the Payment Methods page, navigate to Razorpay.



5. Enter your test mode [KEY_ID] and [KEY_SECRET]. These can be

   generated from the Razorpay Dashboard
   .

6. Select Yes for the option Enabled.

7. Click Save Config. This activates your account in the test mode. You can use this account to make a few test payments and ensure a successful workflow.

   Handy Tips

   In test mode, no real money is deducted from your account.

Step 3: Set Up Webhooks

Webhooks are triggered when certain events occur. Subscribe to webhook events to receive notification (in the form of a webhook payload) when these events occur.

Setting up webhooks makes your integration more robust, and guards against issues arising from poor connectivity. The webhook URL is available on the plugin's settings page. You must copy it from there and use it to set up webhook on the

To set up webhooks in the

1. Log in to the Razorpay Dashboard.
2. Navigate to Settings → Webhooks.
3. Click + Add New Webhook.
4. In the Webhook Setup modal:

   • Paste the URL copied from the Magento site.

     Handy Tips

     Webhooks can only be delivered to public URLs. If you attempt to save a localhost endpoint as part of a webhook set-up, you will notice an error. Please refer to the

     test webhooks

     section for alternatives to localhost.

   • Enter the Secret you had provided on the Magento site. The secret is used to validate that the webhook is from Razorpay. Do not expose the secret publicly. Know more about

     webhooks validation

     .

   • In the Alert Email field, enter the email address to which notifications must be sent in case of webhook failure.

   • Select only the order.paid event from the list of Active Events.

5. Click Create Webhook.

Know more about

Step 4: Setting up the cron with Magento

Setup cron with Magento to execute Razorpay cronjobs for the following actions:

Cancel pending orders

It will cancel the order created by Razorpay according to the timeout saved in the configuration if Cancel Pending Order is enabled.

Update order to processing

Accepts response from Razorpay Webhook for events payment.authorized and order.paid and updates pending order to processing.

Install Magento cron jobs using the command:

bin/magento cron:install

Verify Payment Status

You can track the payment status in three ways:

• From the Dashboard

  .

• Subscribe to the Webhook Events

  .

• Poll our APIs

  .

Verify Status from Dashboard

To verify the payment status from the Dashboard:

1. Log in to the

   Dashboard

   and navigate to Transactions → Payments.
2. Check if a Payment Id has been generated and note the status. In case of a successful payment, the status is marked as Captured.

Subscribe to Webhook Events

You can use Razorpay webhooks to configure and receive notifications when a specific event occurs. When one of these events is triggered, we send an HTTP POST payload in JSON to the webhook's configured URL. Know how to

Example

If you have subscribed to the order.paid webhook event, you will receive a notification every time a customer pays you for an order.

Poll APIs

Next Steps

Step 2:
